The first thing I do when I evaluate digital mapping software is to look at the accuracy of the maps provided or available with the software. You can have the best user interface or software features in the world, but if the maps you provide are inaccurate or out of date, I’m not going to use your program or application.
I’ve come across this issue time and again when planning trips on the Appalachian Trail and in the White Mountains of New Hampshire and it really irks me. Call me old school, but I prefer using paper or waterproof maps for planning because they tend to be updated much more frequently for backcountry locations than digital maps. Crazy as that sounds, it’s true.
Let me give you a few examples for the hike to Bondcliff Mountain, Mount Bond and West Bond Mountain I took earlier this week. These mountains are one of the most popular hiking destinations in all of New Hampshire, so you’d hope that they’d be accurate.
First, the waterproof paper version of this area from the 4th edition Map Adventures White Mountains Trail Map.

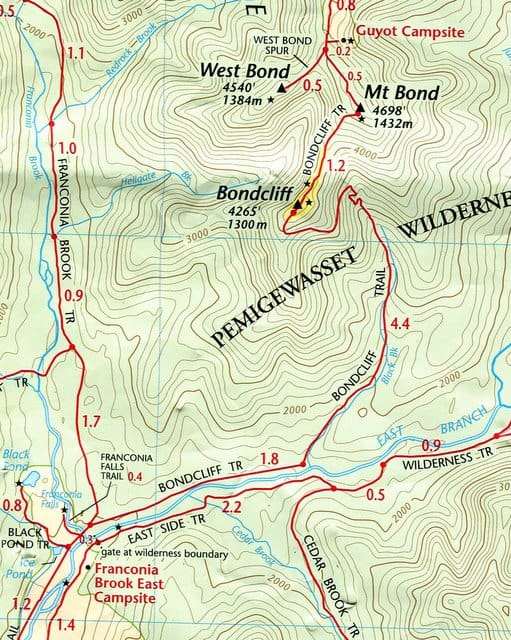

The Bonds from The Map Adventures Waterproof Map
This is the map I primarily use for hiking in the White Mountains. Here are a few things to note about its representation of The Bonds.
- Bondcliff, Mount Bond, and West Bond Mountains are all correctly labelled
- The Bondcliff Trail and the West Bond Spur Trail are shown and labelled
- The Guyot Campsite and spur trail are also shown
Gmap4 from MappingSupport.com
Gmap4 from MappingSupport.com usually has pretty superior maps because they combine multiple digital versions, including historic maps to enrich their map data. The program is freely available online for non-commercial use and covers the United States and Canada. It doesn’t have all of the capabilities of higher end software-based route planning tools but it runs in phone and tablet browsers, lets you mark waypoints, create tracks and routes, share maps online, and save maps to GPX files.

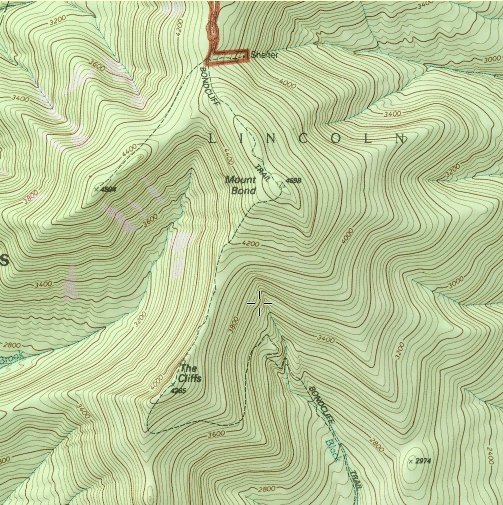

The Bonds by Gmap4
The Gmap4 version of the Bonds region is not bad in comparison to the Map Adventures map. If you knew where you were going, this map could get you there.
- The Bondcliff and West Bond Trails are shown, although the West Bond Spur is not named
- The elevations of the three Bonds peaks are all shown, although West Bond is not named
- The Guyot Shelter and spur trail are shown but not named
- The archaic (old) name of BondCliff is shown (The Cliffs) instead of current usage
TOPO4!
I find that National Geographic’s TOPO! maps are often out of date for New England, especially when it comes to reflecting more remote trails that I know exist. This is from version 4 of TOPO! New England program from 2010.

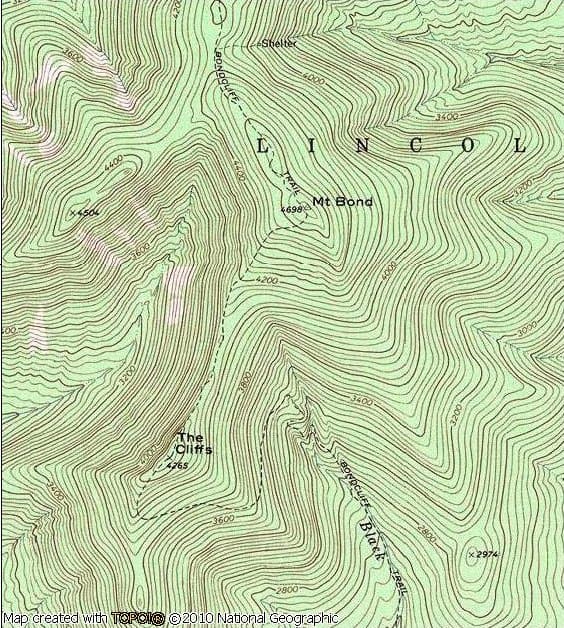

The Bonds by TOPO
So far, the TOPO! map is the most out of date:
- While the Bondcliff Trail is shown, the West Bond Spur is missing
- West Bond Mountain is not labelled
- The Guyot Shelter and spur trail are shown but not named
- The archaic (old) name of BondCliff is shown (The Cliffs) instead of current usage
RouteBuddy
Like TOPO!, RouteBuddy is mapping software that you install on your computer. The maps are sold separately (by state) and, as noted at the RouteBuddy Store, RouteBuddy versions of the USGS Topo maps “are very different to the free ones available elsewhere as none of the free maps have been corrected for safety.”

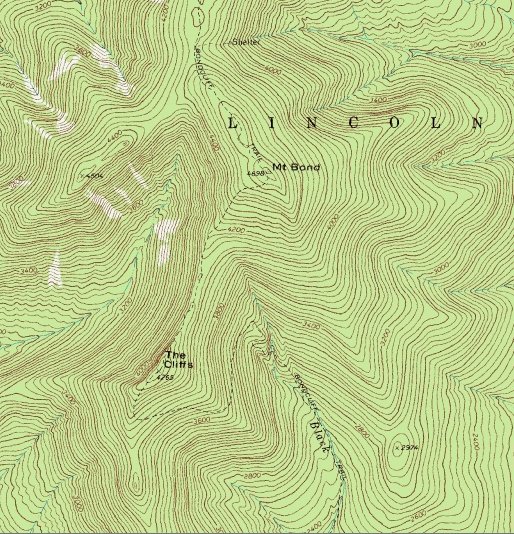

The Bonds by RouteBuddy
Unfortunately, the RouteBuddy maps for the Bonds are as out of date as TOPO!’s.
- While the Bondcliff Trail is shown, the West Bond Spur is missing
- West Bond Mountain is not labelled
- The Guyot Shelter and spur trail are shown but not named
- The archaic (old) name of BondCliff is shown (The Cliffs) instead of current usage
Conclusions
What’s this post tell us? At least in the case of The Bond Mountains Of New Hampshire, desktop based digital mapping tools such as National Geographic’s TOPO and RouteBuddy have out of date maps that are missing trail data and place names, while paper maps and on line mapping software are more up to date.
In practice, this means that you should use multiple sources of information to plan hiking trips in New Hampshire’s White Mountains, including ones that you know are updated annually such as the AMC’s White Mountain Guide and the US Forest Service’s White Mountain web site,which has up to date trail closure information. Personally, I’d also recommend that you get yourself a good waterproof map to carry instead of your phone or GPS, if only because it’s likely to be more accurate than commercial applications that you can purchase from software makers, and it doesn’t have a battery.
Call me old school.
Disclaimer: RouteBuddy provided Philip Werner (SectionHiker.com) with evaluation software for review. Philip Werner purchased TOPO! with his own funds.
P.S. If you think this is an isolated example, compare the route from Mt Waumbek to the York Pond Trail and Bunnell Notch along the Kilkenny Ridge in all of these programs/applications.
